FORGED DRAG WHEELS

Build exactly what you need with notting preset.

FORGED DRAG WHEELS

Build exactly what you need with notting preset.

Streetable

All of our drag wheels are designed to hold up on the street as the barrels and spoke thicknesses are held to the same cornering fatigue and load ratings as our standard monoblock wheels.

Flexibility

Build exactly what you need fitment wise without any compromise of preset boxed wheels. Select all options as you typically would with any of our wheels by choosing the design, finish, and more.

Packaging

Each setup can be built as four wheel drag specific package with skinny fronts or built as a six wheel street setup with four standard size wheels and a pair of matching smaller diameter rears.

FORGED DRAG WHEELS

SETUP FLEXIBILITY

Drag Specific

Built per order setup utilizing a 18x5″ skinny fronts and 15″, 17″, or 18″ rear wheels specifically for drag use with radial or bias ply tires. Even though setup for drag use these wheels are produced with the same material thicknesses and load ratings as all our other wheels so they can be driven on the street.

Street/Dual Purpose

Built per order setup utilizing standard width front wheels in conjunction with a 15″, 17″, or 18″ rear wheel to support a drag rail or bias ply tires. These setups can also be built as a full set of standard street wheels with a matching pair of 15″, 17″, or 18″ rear wheels to swap over to when headed to the drag strip.

DRAG SPECIFIC

Built per order setup utilizing a 18x5″ skinny fronts and 15″, 17″, or 18″ rear wheels specifically for drag use with radial or bias ply tires. Even though setup for drag use these wheels are produced with the same material thicknesses and load ratings as all our other wheels so they can be driven on the street.

STREET/DUAL PURPOSE

Built per order setup utilizing standard width front wheels in conjunction with a 15″, 17″, or 18″ rear wheel to support a drag rail or bias ply tires. These setups can also be built as a full set of standard street wheels with a matching pair of 15″, 17″, or 18″ rear wheels to swap over to when headed to the drag strip.

DRAG SPECIFIC SIZING

FRONT
Size
Backspacing
Brakes
18x5.0
3.25″ to 2.00″
BBK Compatible (395mm)
REAR
Size Backspacing Optional
15x9.0 7.25″ to 5.50″ knurled beadseats
15x10.0 8.25″ to 6.50″ knurled beadseats
17x9.5 7.75″ to 4.00″ knurled beadseats
17x10.5 8.75″ to 5.00″ knurled beadseats
17x11.0 9.25″ to 5.50″ knurled beadseats
18x10.5 8.75″ to 5.00″ knurled beadseats
18x11.0 9.25″ to 5.50″ knurled beadseats
18x12.0 10.25″ to 6.50″ knurled beadseats
OTHER

The following options above are simply the most common drag specific sizing and we can produce many other widths. Street package sizing will vary greatly depending on the application and your wants due to so suggest giving us a call or reaching out to any of our dealers for more information.

DRAG SPECIFIC SIZING

MOST COMMON DRAG PACKAGE SIZES

FRONT
Size Backspacing Range Offset Range PCD/Hub Size Finishing Options Brake Clearance
18x5.0 3.25″ to 2.00″ +5 to -25 vehicle specific any of our available options BBK Compatible (395mm)
REAR
Size Backspacing Range Offset Range PCD/Hub Size Finishing Options Optional
15x9.0 7.25″ to 5.50″ +58 to +5 vehicle specific any of our available options knurled beadseats
15x10.0 8.25″ to 6.50″ +70 to +25 vehicle specific any of our available options knurled beadseats
17x9.5 7.75″ to 4.00″ +64 to -30 vehicle specific any of our available options knurled beadseats
17x10.5 8.75″ to 5.00″ +76 to -18 vehicle specific any of our available options knurled beadseats
17x11.0 9.25″ to 5.50″ +82 to -12 vehicle specific any of our available options knurled beadseats
18x10.5 8.75″ to 5.00″ +76 to -18 vehicle specific any of our available options knurled beadseats
18x11.0 9.25″ to 5.50″ +82 to -12 vehicle specific any of our available options knurled beadseats
18x12.0 10.25″ to 6.50″ +95 to +0 vehicle specific any of our available options knurled beadseats
OTHER
The following options above are simply the most common drag specific sizing and we can produce many other widths. Street package sizing will vary greatly depending on the application and your wants due to so suggest giving us a call or reaching out to any of our dealers for more information.

AVAILABLE IN 15 TO 23 INCH DIAMETERS

AVAILABLE IN 17 TO 23 INCH DIAMETERS

RS31
RS41
RS43
RS40
RS42
RS45

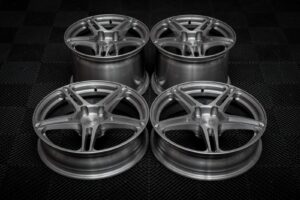

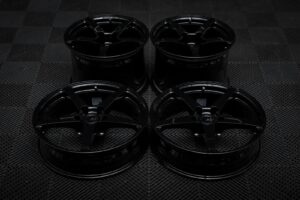

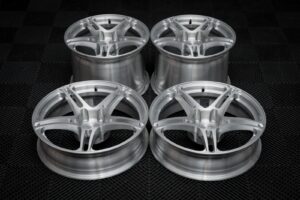

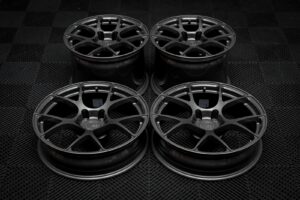

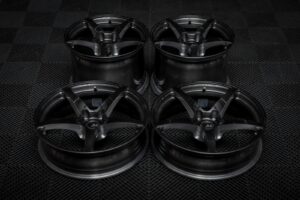

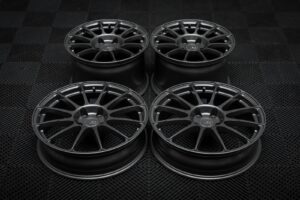

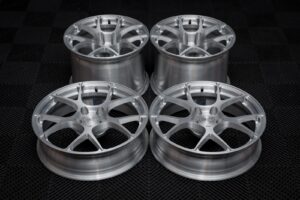

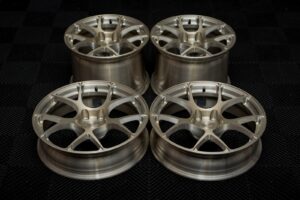

PHOTOS
